Load Web image in Picture Box

Loading image from a server into a Picturebox.

Load Web image in Picture Box
Gunnar Correa
Gunnar Correa
10/09/2026 1 minuto

Hello guys, are you okay? I hope very well!

Most of our projects need to load images from a server, be it an advertisement, a new software update, or other needs. For this project, we will need the components below.

- PictureBox;

- Button;

- TextField.

Organize your project layout as shown below.

Visual Studio Project layout

Image 1: Project layout

Now change the properties as shown in the table below.

ComponentProperties

PictureBox



Name

pcbImage

SizeMode

CenterImage





Button



Name

btnLoad

Text

Load Image





TextField



Name

txtLoad





Form



Name

frmMain

StartPosition

CenterScreen

ShowIcon

False

MaximizeBox

False

Text

Load Image

Now double-click the button and enter the algorithm shown below.

Code 01

plaintext
WebRequest request = WebRequest.Create(txtLoad.Text); //Initializes an instance with the given URL
            using (var response = request.GetResponse()) //Tries to access the object
            {
                using (var str = response.GetResponseStream()) //Returns the metadata of the image
                {
                    pcbImage.Image = Bitmap.FromStream(str); //Creates a bitmap based on the loaded metadata, in the sequence inserts into the image property.
                }
}

Remember to import the System.NET class.

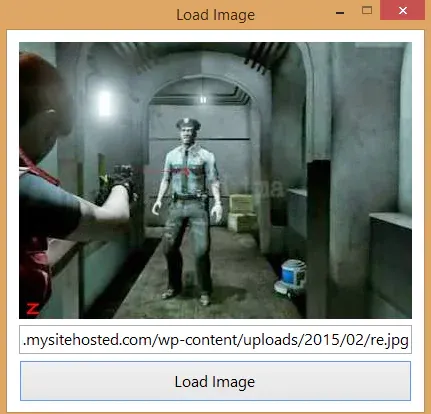

Load image web into picturebox.

Image 2: Final result.

I hope you enjoyed it, leave a comment.
